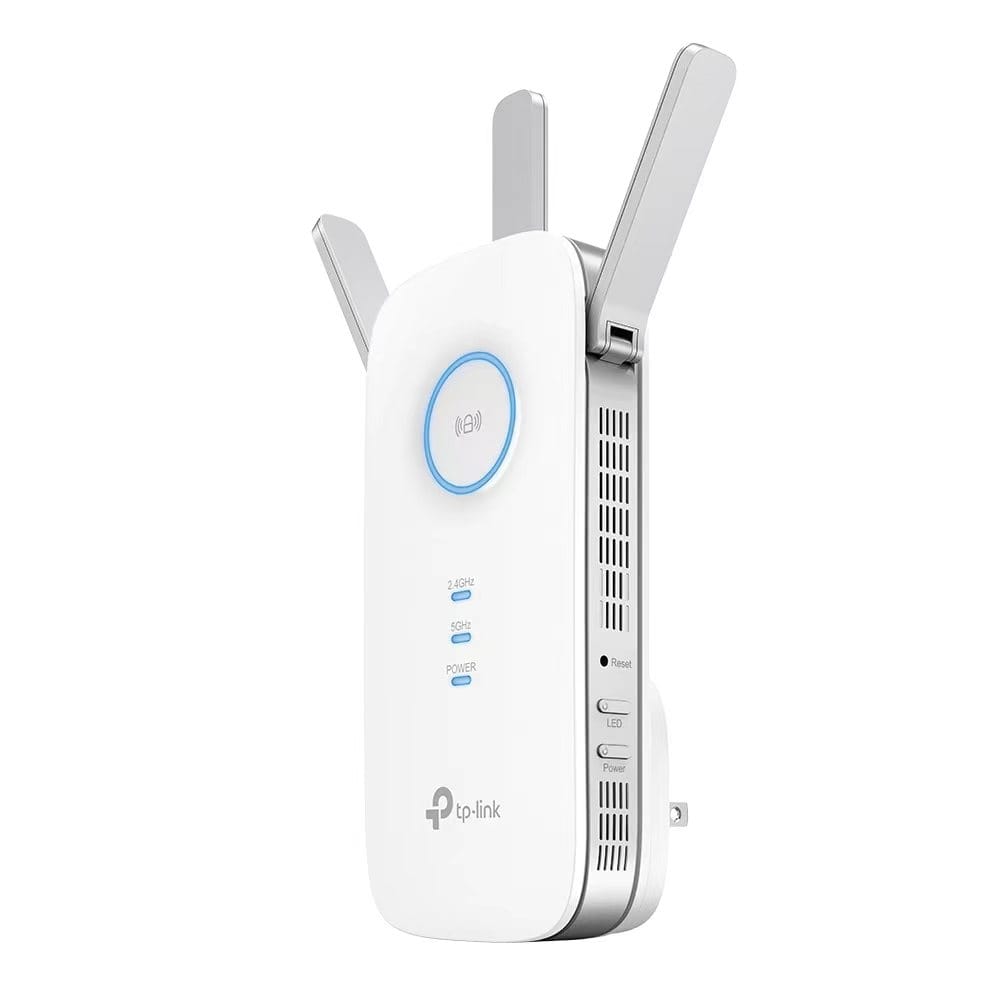

TP-Link AC1750 Dual Band Wireless Wall Plugged Range Extender / RE450
TP-Link AC1750 Dual Band Wireless Wall Plugged Range Extender / RE450
Couldn't load pickup availability
TP-Link AC1750 WiFi Extender (RE450), PCMag Editor's Choice, Up to 1750Mbps, Dual Band WiFi Repeater, Internet Booster, Extend WiFi Range further
Description:
AC1750 Dual Band Wi-Fi - Simultaneous 450Mbps on 2.4GHz + 1300Mbps on 5GHz

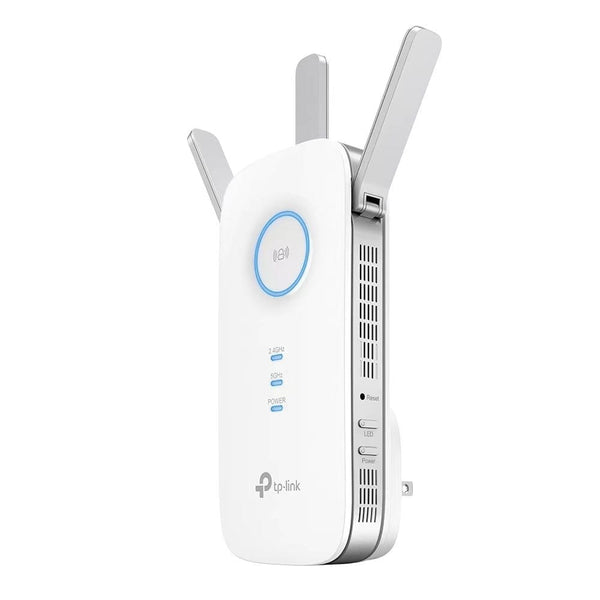

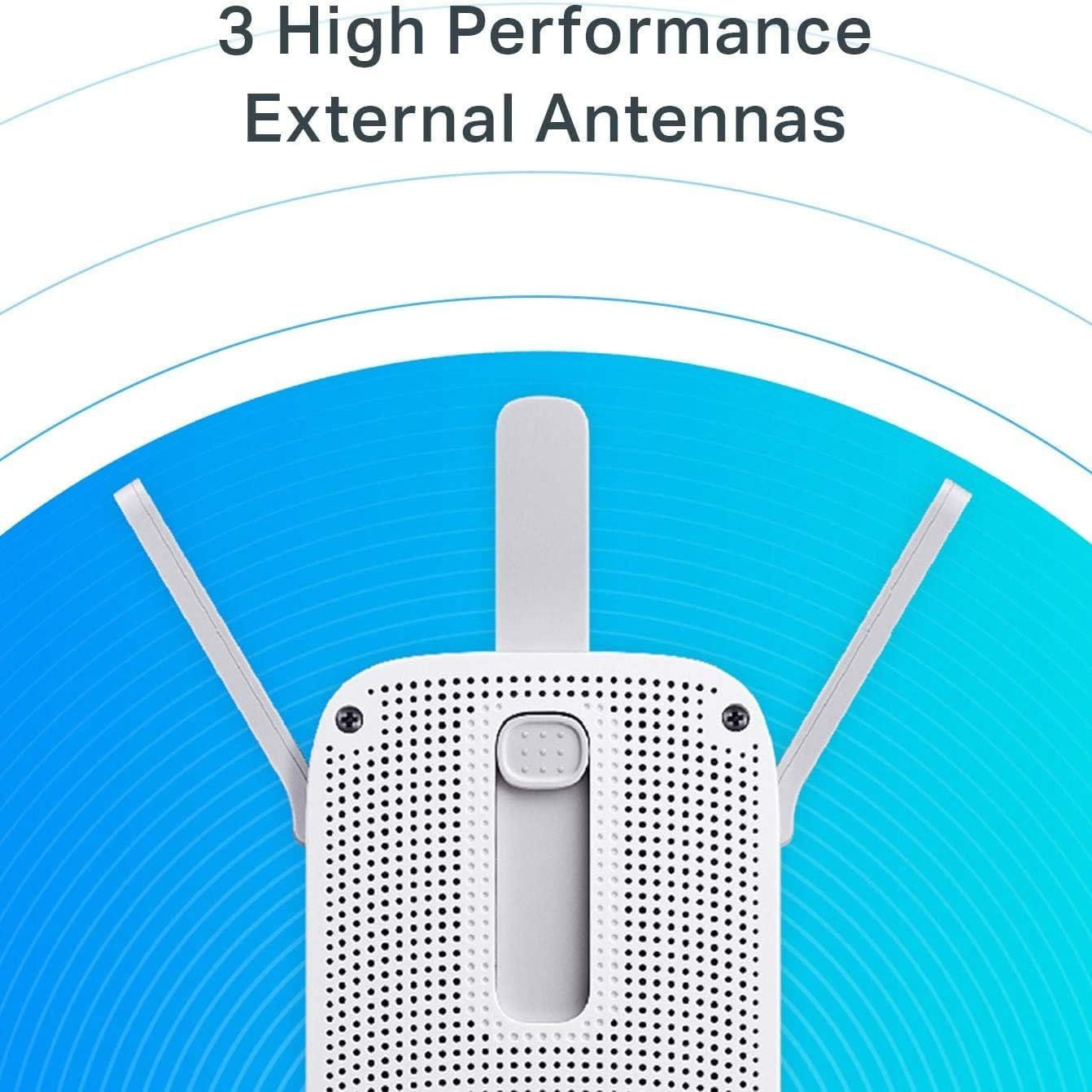

Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections

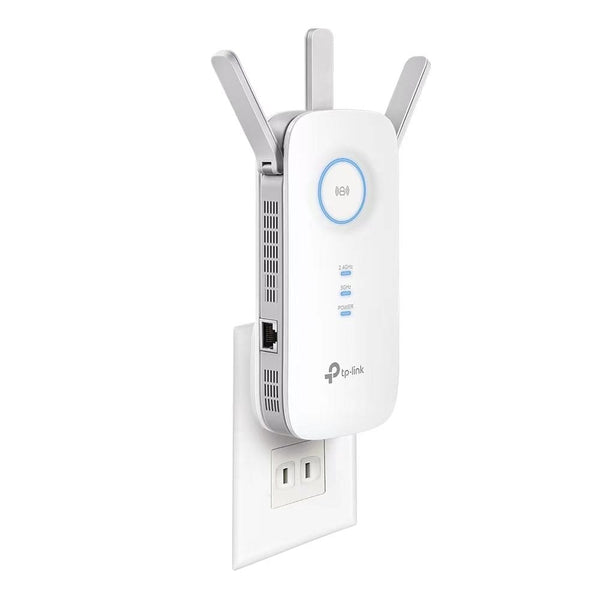

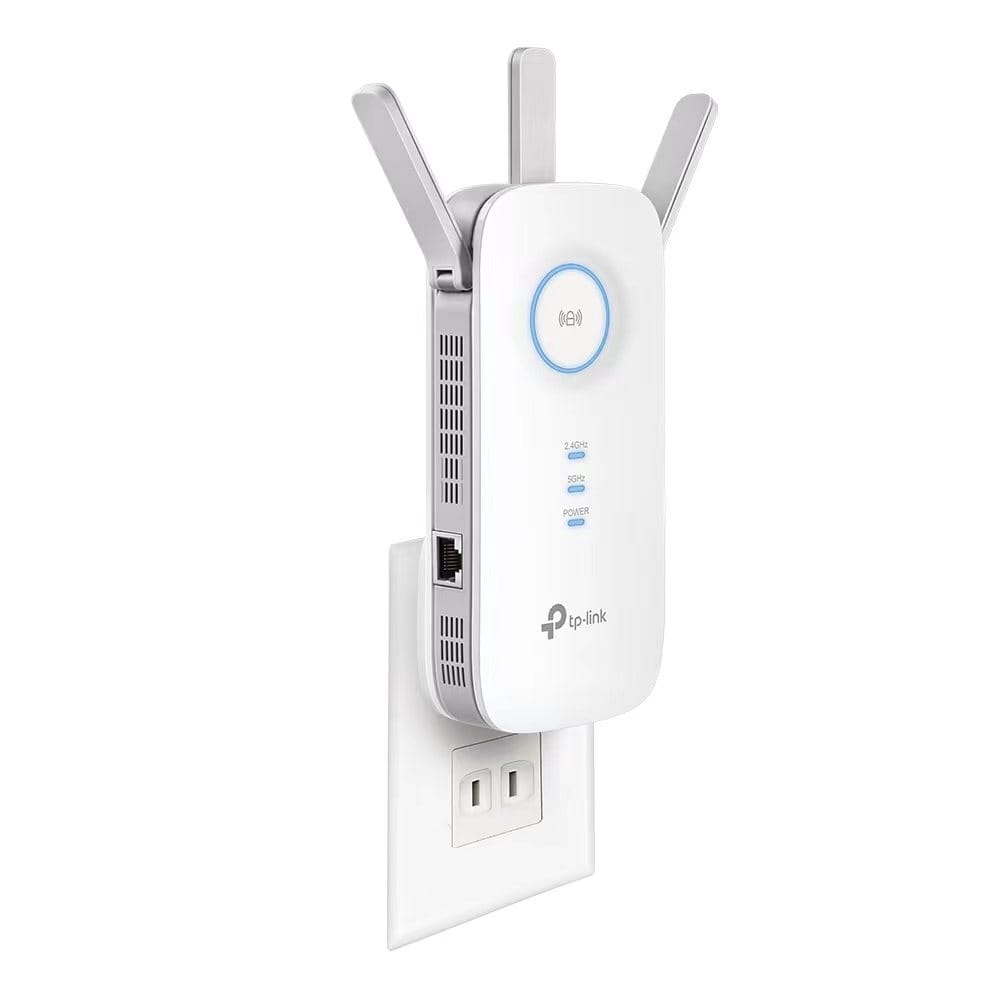

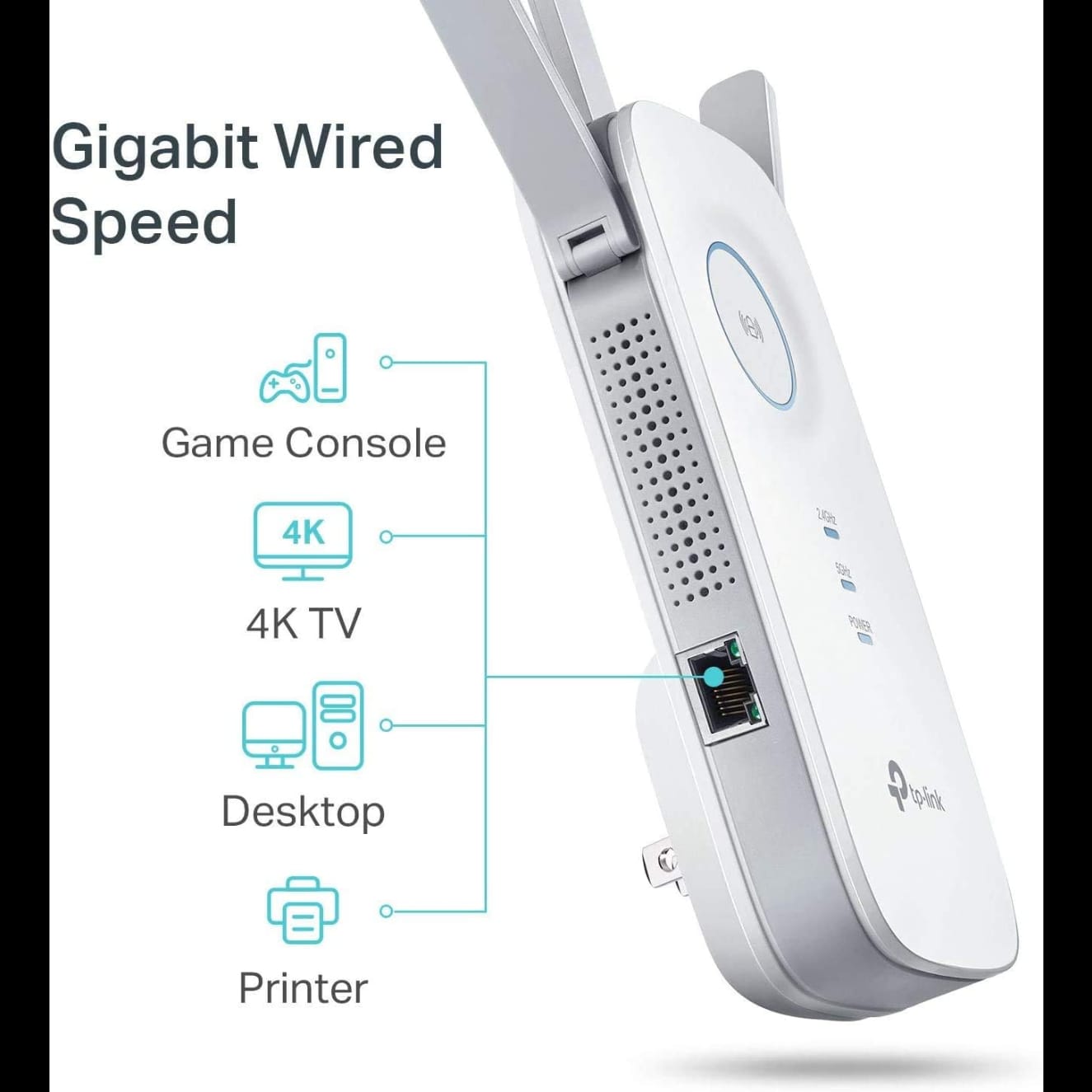

Gigabit Ethernet port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed

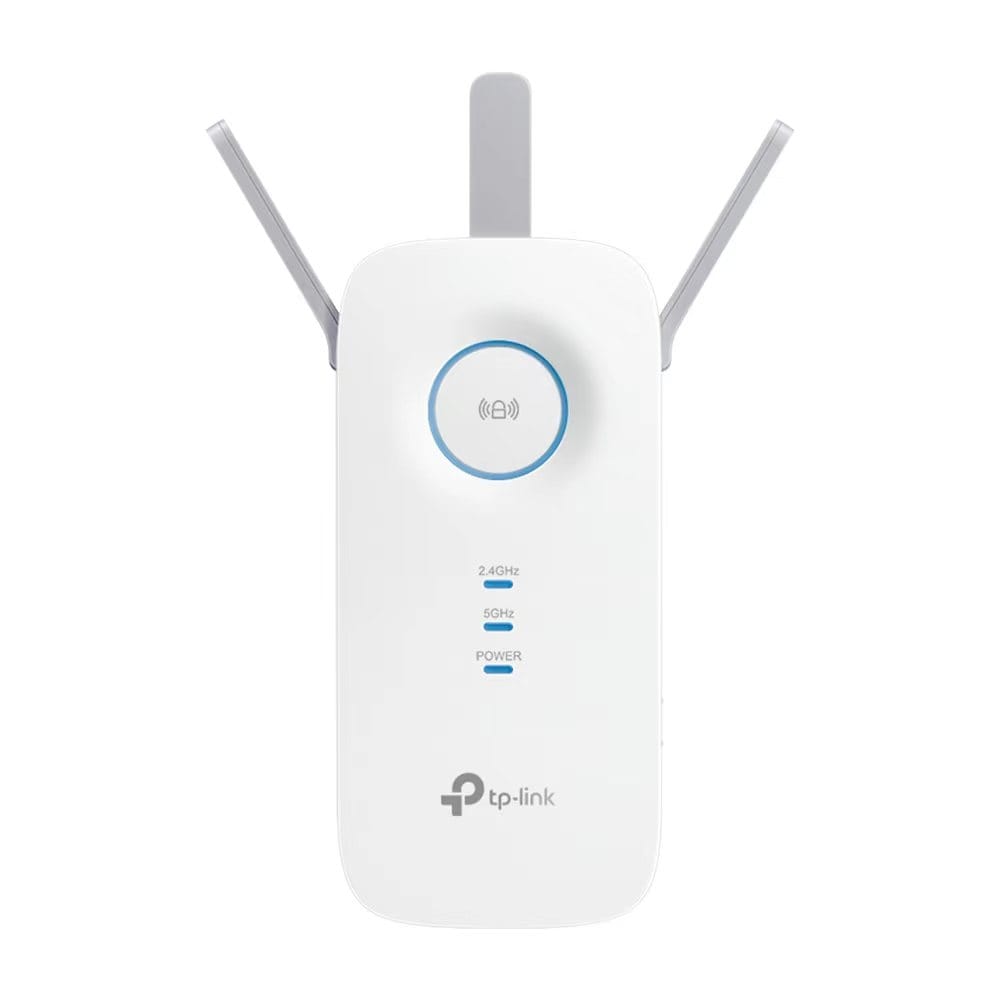

Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device

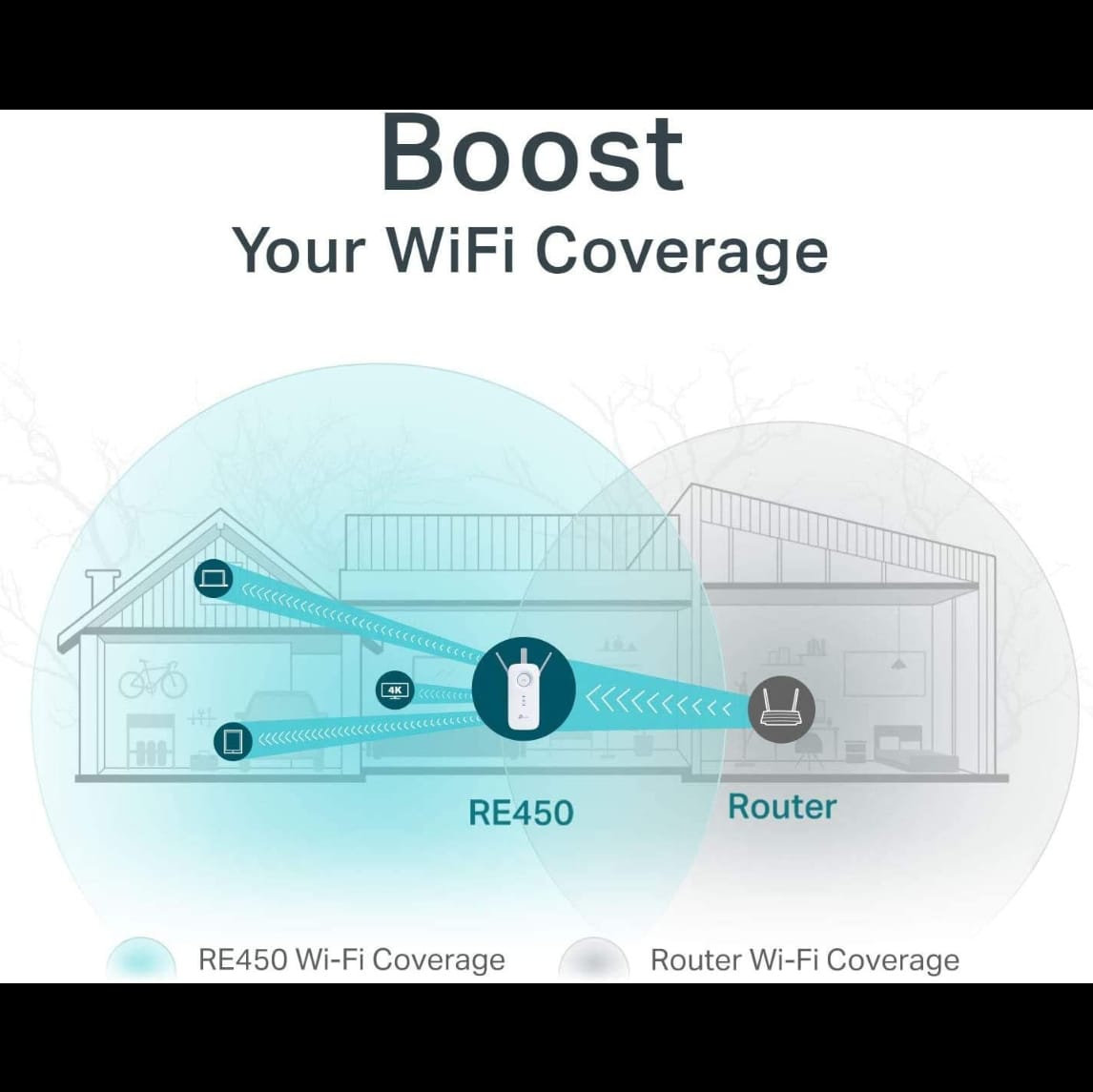

Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point
Hardware Features
Standards & Protocols:
IEEE 802.11ac / 802.11n / 802.11g / 802.11b
Plug Type: EU, UK, US, AU, KR, JP
Interface: 1 × 10/100/1000M Gigabit Ethernet Port (RJ45)
Ports: 1 × Gigabit Ethernet
Buttons: WPS, Reset, LED Control, Power
Input Power: 100–240V ~ 50/60Hz
Power Consumption: Max 10W
Antenna: 3 × External Antennas
Dimensions (W × D × H):
6.4 × 3.0 × 2.6 in (163 × 76.4 × 66.5 mm)
Wireless Features
Wireless Standards
IEEE 802.11a/n/ac (5 GHz)
IEEE 802.11b/g/n (2.4 GHz)
Frequency Bands
2.4 GHz & 5 GHz (802.11ac)
Signal Rates
5 GHz: Up to 1300 Mbps
2.4 GHz: Up to 450 Mbps
Working Modes
Range Extender
Access Point
Reception Sensitivity
5 GHz
11a 6Mbps: −93 dBm @ 10% PER
11a 54Mbps: −76 dBm @ 10% PER
11ac HT20 MCS8: −68 dBm @ 10% PER
11ac HT40 MCS9: −64 dBm @ 10% PER
11ac HT80 MCS9: −61 dBm @ 10% PER
2.4 GHz
11g 54Mbps: −77 dBm @ 10% PER
11n HT20 MCS7: −73 dBm @ 10% PER
11n HT40 MCS7: −70 dBm @ 10% PER
Wireless Functions
Wireless Statistics
Concurrent Dual-Band (2.4G & 5G Boost)
Access Control
LED Control
Domain Login Function
Wi-Fi Coverage Optimization
Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power
< 20 dBm (2.4 GHz)
< 23 dBm (5 GHz)
Mesh Technology
EasyMesh-Compatible
Network
Operating Modes: Range Extender / Access Point
Certifications
CE
FCC
RoHS
Package Contents
AC1750 Wi-Fi Range Extender (RE450)
Quick Installation Guide
Box Dimensions
7.9 × 4.9 × 3.4 in
(202 × 125 × 86 mm)
System Requirements
Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10
Mac OS
NetWare
UNIX
Linux
Environment
Operating Temperature: 0°C – 30°C (32°F – 86°F)
Storage Temperature: −40°C – 70°C (−40°F – 158°F)
Operating Humidity: 10% – 90% (Non-condensing)
Storage Humidity: 5% – 90% (Non-condensing)
